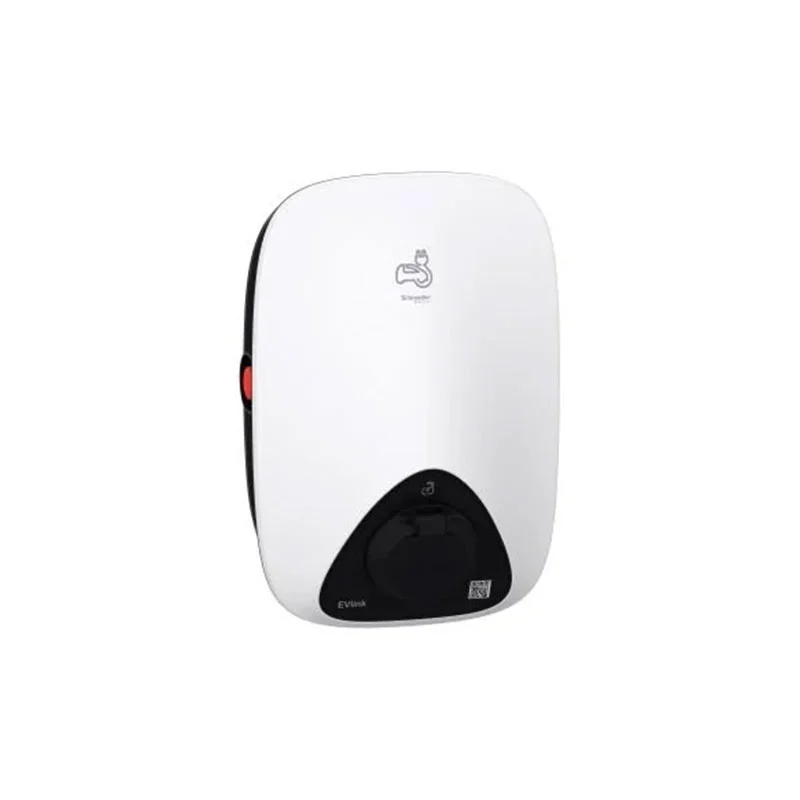

SCHNEİDER ELEKTRİK DUVAR TİPİ / EVlink Home, 3P+N 1xT2 11kW 16A with RDC-DD

Stok Kodu : EVH4S11N2

41.472,14 TL

Complementary
rated supply voltage	400 V AC 50 Hz +/- 10 %
Earthing system	TT TN-S
Number of inputs	1
Input type	Auxiliary for dynamic energy management
Control type	Red 1 emergency stop, function: 1 push-button
Local signalling	Red, green and blue 1 LED, function: status indication
Protection type	Earth-leakage protection
Height	409 mm
Width	282 mm
Depth	148 mm
Net weight	5.6 kg
Colour	White (RAL 9003)
Standards	EN 61851 IEC 61851-1 EN 61000-6-1 EN 61000-6-3
Product certifications	CE UKCA
Maximum supply current	16 A

Environment
IP degree of protection	IP54 conforming to EN/IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
Ambient air temperature for operation	-30…50 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	5…95 %
Operating altitude	0...2000 m
